Resource Filters

December 5, 2017

You can limit the files that are displayed in the Resources tree.

This is useful if you are building animations; you can quickly get hundreds of output .png files cluttering the directory, that you don't need to see here.

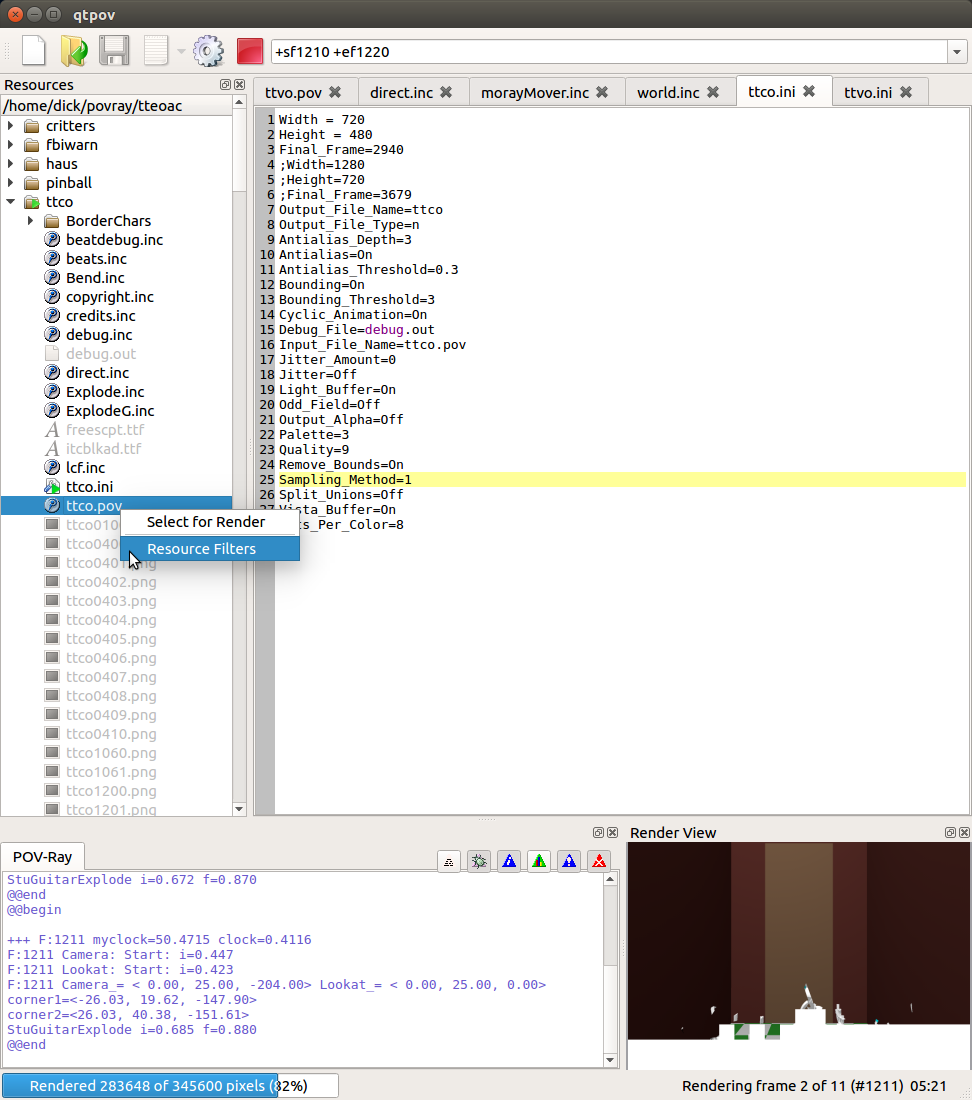

The context right-click menu on the Resources will bring up the filter dialog.

There are 3 options for filtering. Qt uses an inclusive filter model, you specify the files you want displayed, (as opposed to eclipse's exclusive model, which hides the files specified).

You can remove a filter by clicking the red X
Add a new filter by typing its name and click the green +

The default filters are the 3 primary POV-Ray file types; *.pov, *.inc, and *.ini .
